    ISO9001 Customized Roll Forming Machine Parts Feeding Table Control Box

    You can choose your want standard parts to use in your customized roll forming machine

    Feeding table

    IMG_8503_副本

    Insert raw material (steel plate) through the beach to manufacture and process

    It can guarantee coil go straight and the out products neat, parallel

    Feeding table

    IMG_0168

    Insert raw material (steel plate) through the beach to manufacture and process

    It can guarantee coil go straight and the out products neat, parallel

    Control box


    DETAL PLC control system

    Target piece`s length is adjustable and digit

    Two modes operate: automatic and manual type

    Button press and screen touch operate, easy operate

    Language: Chinese and English or as acustomer' need

    Control box

     control box

    DETAL PLC control system

    Target piece`s length is adjustable and digit

    Two modes operate: automatic and manual type

    Button press and screen touch operate, easy operate

    Language: Chinese and English or as acustomer' need

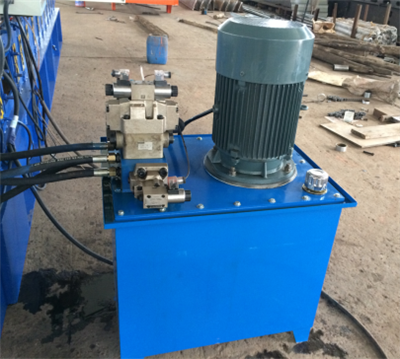

    Hydraulic oil pump


    Hydraulic oil into the hydraulic oil tank

    Pump motor drives the cutter work

    Motor Power: 3KW

    Hydraulic oil: 46# Oil

    add capacity: oil add 3/4 of box capacity

    Oil pressure: 8-10 MPa

    Hydraulic oil pump

    IMG_4887-5 (2)

    Hydraulic oil into the hydraulic oil tank

    Pump motor drives the cutter work

    Motor Power: 3KW

    Hydraulic oil: 46# Oil

    add capacity: oil add 3/4 of box capacity

    Oil pressure: 8-10 MPa

    Receiving table


    Length: Common 2-3 m

    Operate : Manual work

    Used to collect the finished pieces

    Support roller to transmit pieces

    Easy for panel take away by forklifts

    Receiving table

    IMG_7434-1

    Length: Common 2-3 m

    Operate : Manual work

    Used to collect the finished pieces

    Support roller to transmit pieces

    Easy for panel take away by forklifts

    Receiving table

    IMG_0198-1

    Certificate CE & ISO9001

    QQ截图20211229161629

    We sell country
