PBU panel roof sheet roll forming machine in US

Ask Lasest Price
Brand Name :	IRONSTAR

Add to Cart

Product Details
Company Profile

PBU panel roof sheet roll forming machine in US

Short Description:

U panel roll forming machine mainly used in America, rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material. Some customer ask PBU panel and U panel make in one machine, it is ok. We make this machine to produce two drawing for customer.

U panel roll forming machine | u panel roofing sheet machine | u panel machines

Raw material:PPGI
Warranty:3 years
Export port:Tianjin port
Payment Terms:T/T, L/C, D/A, D/P
Container:40 feet container
Working days:40 working days

Diameter of PBU roofing sheet roll forming machine

NO	Type		Specification
1	Raw material	Type	PPGI
		Feeding width	As customer' drawing
		Thickness	0.3-0.6 mm
2	Decoiler	Operation	Manual
2	Decoiler	Weight apacity	5 Tons
3	Main body	Roller station	11-13 rows
		Diameter of shaft	70 mm
		Shaft material	45# with 0.05mm chrome
		Roller material	45# with 0.05mm chrome
		Frame	360mm C-beam
		Frame thickness	16 mm
		Machine size	About 5.811.5 m
		Machine weight	About 4 tons
		Machine color	As customer need
		Operation	Hydraulic automatic
		Working speed	Common speed 8-20 m/min
4	Cutter	Hardness	50-65 HRC
		Cutting tolerance	± 1mm
		Material	Cr 12
		Operate	Hydraulic cutting
5	Power	Driving way	Chain 1 inch
		Main motor	5.5 KW
		Pump motor for cutter	4 KW
		Voltage	380V/50HZ, 3 phase or as customer' request
6	Control box	Electric box	PLC control system, inventer
		Screen	Touchable screen
		PLC brand	Delta made in Taiwan
		Inverter brand	Delta made in Taiwan or SAJ
		Language	Chinese and English or as customer' request
7	Stacker	Operation	Manual
7	Stacker	Length	2-3 m

PBU roofing sheet product show

PBU panel roof sheet roll forming machine in US

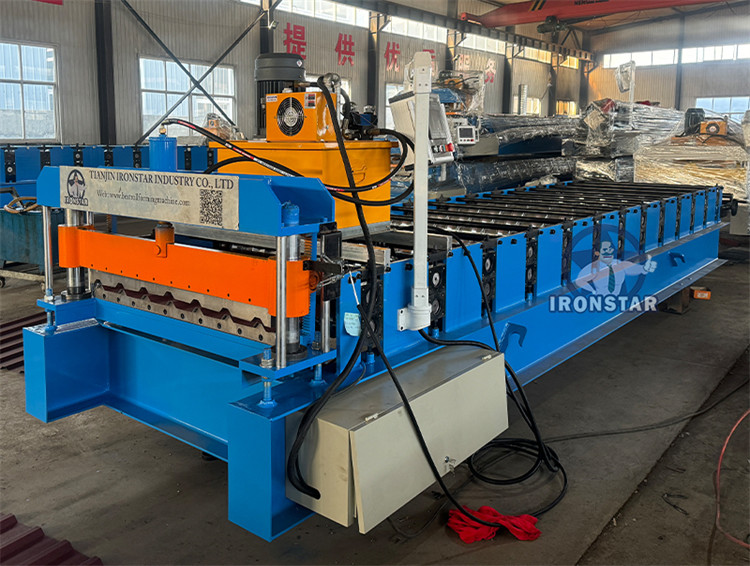

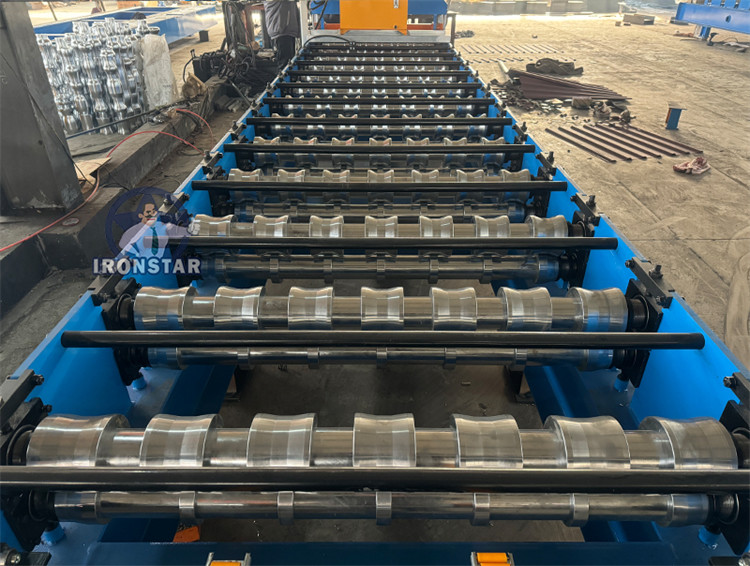

Roll forming machine

PBU panel roof sheet roll forming machine in US

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.
