1300mm 3.5mm automatic steel coil cut to length machine in Mexico

1300mm 3.5mm automatic steel coil cut to length machine in Mexico

Short Description:

Cut to length machine control by PLC, it can cut to any length as your want, more flexible and easy operate. Price cheap, Cut to length machine width common include 1m, 1250mm, 1.5m, material use PPGI or GI material, thickness between 0.3-4 mm, machine details is like up type:


We sell lots of such machine to India, Thailand, Russia, Saudi Arabic, Oman etc, Size can customize can your need size


Cut to length machine | metal cut to length machine | sheet metal cutting machine | simple cutting machine

  • Raw material:Galvanized steel or PPGI
  • Warranty:3 years
  • Export port:Tianjin port
  • Payment Terms:T/T, L/C, D/A, D/P
  • Container:20 feet container
  • Working days:20 working days

Diameter of cut to length roll forming machine

NOTypeSpecification
1Raw materialTypeGalvanized steel or PPGI
Feeding width1500/1220/1200/1000mm or as customer' need
Thickness1-3.5 mm
2DecoilerOperationManual
Weight apacity5 Tons

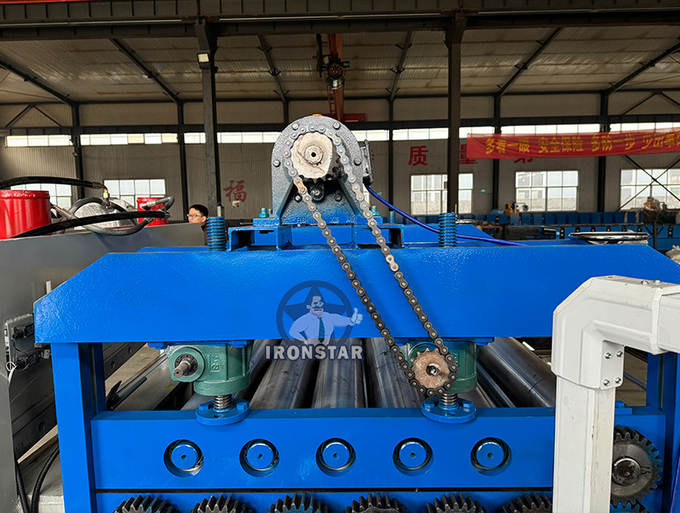

3Main bodyRoller stationtop 6 rows down 7 rollers
Diameter of shaft150 mm
Shaft material45# with 0.05mm chrome
Roller material45# with 0.05mm chrome
FrameSteel plate welding
Frame thickness50 mm
Machine sizeAbout 2.5*2*2 m
Machine weightAbout 2.5 tons
Machine colorAs customer need
OperationHydraulic automatic
Working speedCommon speed 8-20 m/min
4CutterHardness50-65 HRC
Cutting tolerance± 1mm
MaterialCr 12
OperateHydraulic cutting
5PowerDriving wayChain 1.2 inch
Main motor7.5 KW
Cutter pump motor5.5 KW
Voltage380V/50HZ, 3 phase or as customer' request
6Control boxElectric boxPLC control system, inventer
ScreenTouchable screen
PLC brandDelta made in Taiwan
Inverter brandDelta made in Taiwan or SAJ
LanguageChinese and English or as customer' request
7StackerOperationManual
Length2-3 m


Cut to length machine


1300mm 3.5mm automatic steel coil cut to length machine in Mexico


1300mm 3.5mm automatic steel coil cut to length machine in Mexico


1300mm 3.5mm automatic steel coil cut to length machine in Mexico


1300mm 3.5mm automatic steel coil cut to length machine in Mexico


1300mm 3.5mm automatic steel coil cut to length machine in Mexico


Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 20 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.
