35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America

  • Product Details
  • Company Profile

35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America

35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America

Short Description:

U purlin roll forming machine popular sell in many countries, common U purlin rolling thickness from 1-3 mm, material use Galvanized steel material


We sell lots of such machine to India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc, Size can customize can your need size


U purlin roll forming machine machine | U guide rail forming machine

  • Raw material:Galvanized steel
  • Warranty:3 years
  • Export port:Tianjin port
  • Payment Terms:T/T, L/C, D/A, D/P
  • Container:20 feet container
  • Working days:40 working days

Diameter of U purlin roll forming machine

NOTypeSpecification
1Raw materialTypeGalvanized steel
Feeding widthAs customer' drawing
Thickness3.5 mm
2DecoilerOperationManual
Weight apacity3 Tons
3Main bodyRoller station10-18 rows
Diameter of shaft80 mm
Shaft material45# with 0.05mm chrome
Roller material45# with 0.05mm chrome
Frame300 H-beam
Frame thickness20 mm
Machine sizeAbout 5.5*0.8*1 m
Machine weightAbout 2.2 tons
Machine colorAs customer need
OperationHydraulic automatic
Working speedCommon speed 8-20 m/min
4CutterHardness50-65 HRC
Cutting tolerance± 1mm
MaterialCr 12
OperateHydraulic cutting
5PowerDriving wayChain 1 inch
Main motor15 KW
Pump motor for cutter5.5 KW
Voltage380V/50HZ, 3 phase or as customer' request
6Control boxElectric boxPLC control system, inventer
ScreenTouchable screen
PLC brandDelta made in Taiwan
Inverter brandDelta made in Taiwan or SAJ
LanguageChinese and English or as customer' request
7StackerOperationManual
Length2-3 m

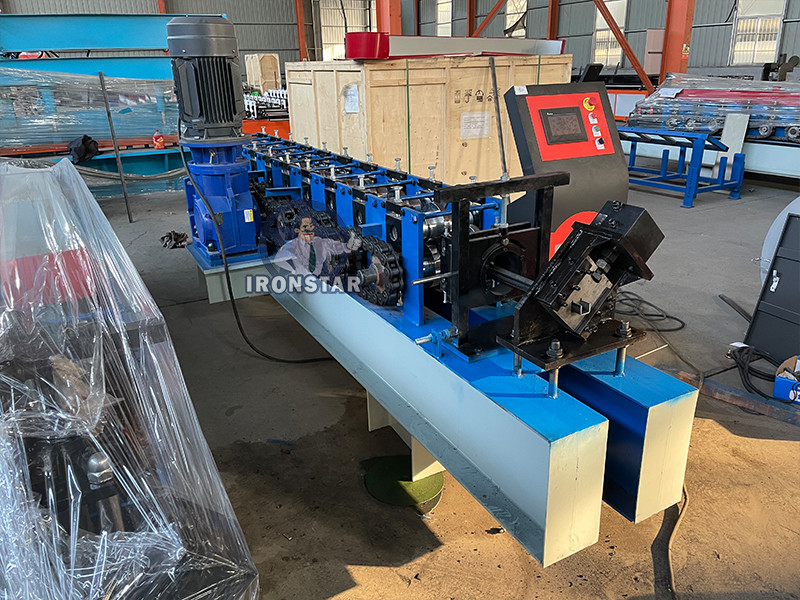

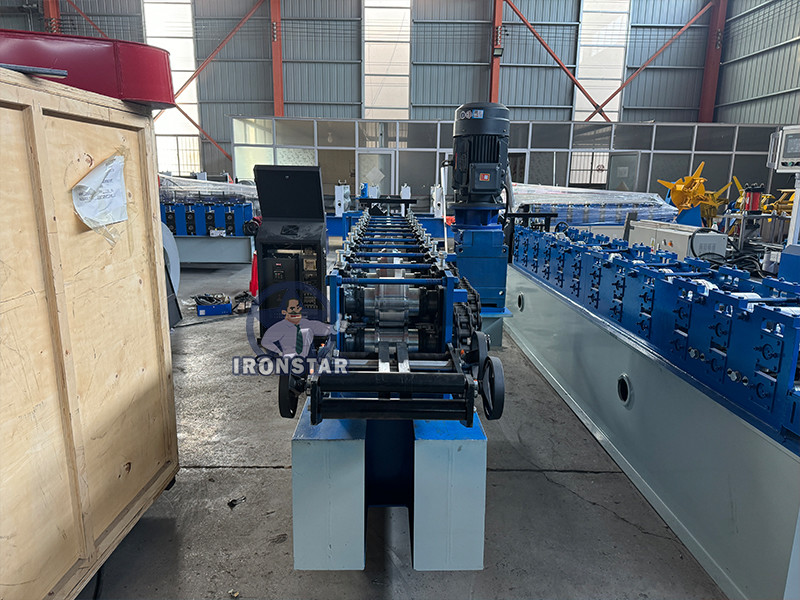

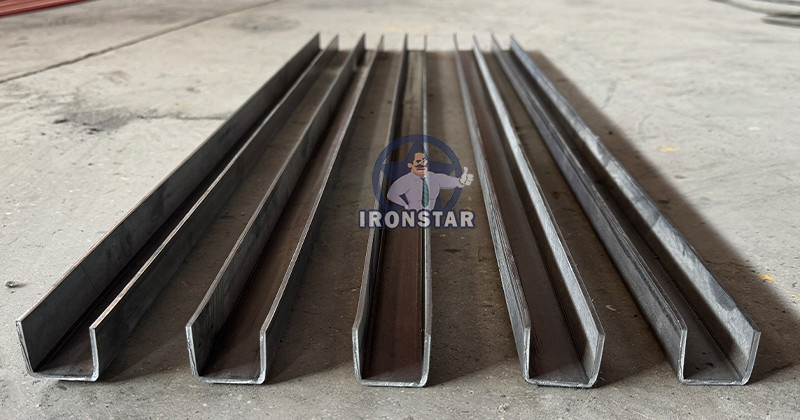

Product show - 35*30mm


35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America


35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America

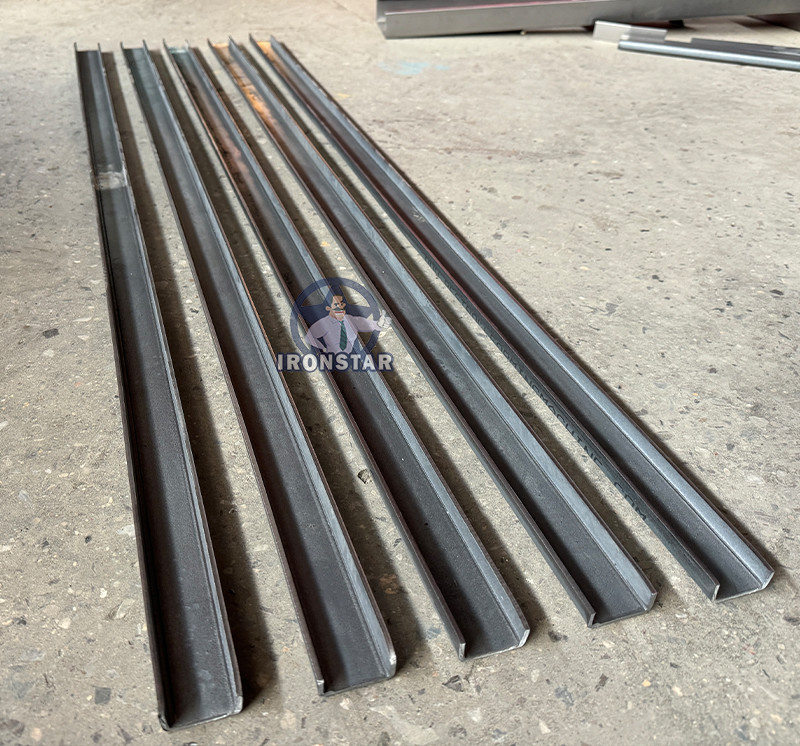

Product show - 35*15mm


35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America


35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America


Roll forming machine


35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America


35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America


35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America


35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America


35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America


35*15mm and 35*30mm 10 Ga 2 sizes in 1 U purlin roll forming machine in America


Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.
