2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

  • Product Details
  • Company Profile

2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia

Short Description:

Angle bead roll forming machine | Corner bead production line | Metal angle bead machine | Corner bead roll forming machine | V shape roll forming machine | Steel wall angle bar roll forming machine

  • Raw material:Galvanized steel
  • Warranty:3 years
  • Export port:Tianjin port
  • Payment Terms:T/T, L/C, D/A, D/P
  • Container:20 feet container
  • Working days:40 working days

Diameter of Angle bead roll forming machine

NOTypeSpecification
1Raw materialTypeGalvanized steel
Feeding widthAs customer' drawing
Thickness1-3 mm
2DecoilerOperationManual
Weight apacity3 Tons
3Main bodyRoller station10 rows
Diameter of shaft65 mm
Shaft material45# with 0.05mm chrome
Roller material45# with 0.05mm chrome
FrameSteel plate welding
Frame thickness16 mm
Machine sizeAbout 4.2*0.8*1 m
Machine weightAbout 2.5 tons
Machine colorAs customer need
OperationHydraulic automatic
Working speedServo motor speed 30-50 m/min
4CutterHardness50-65 HRC
Cutting tolerance± 1mm
MaterialCr 12
OperateHydraulic cutting
5PowerDriving wayChain 1 inch
Main motor5.5 KW
Pump motor for cutter4 KW
Voltage380V/50HZ, 3 phase or as customer' request
6Control boxElectric boxPLC control system, inventer
ScreenTouchable screen
PLC brandDelta made in Taiwan
Inverter brandDelta made in Taiwan or SAJ
LanguageChinese and English or as customer' request
7StackerOperationManual
Length2-3 m

Description of Angle bead roll forming machine

Angle bead roll forming machine popular sell in many countries, we sell lots of such machine to Iraq, Egypt, UAE, Chile, South Africa etc

Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 27*27 mm, 30*30 mm, 40*40 mm. Product thickness common between 1-3 mm

This machine we make for customer 30*30 to 80*80 mm, size interchangeable

Customized is welcome, tell me your need size and thickness, we provide you satisfied machine

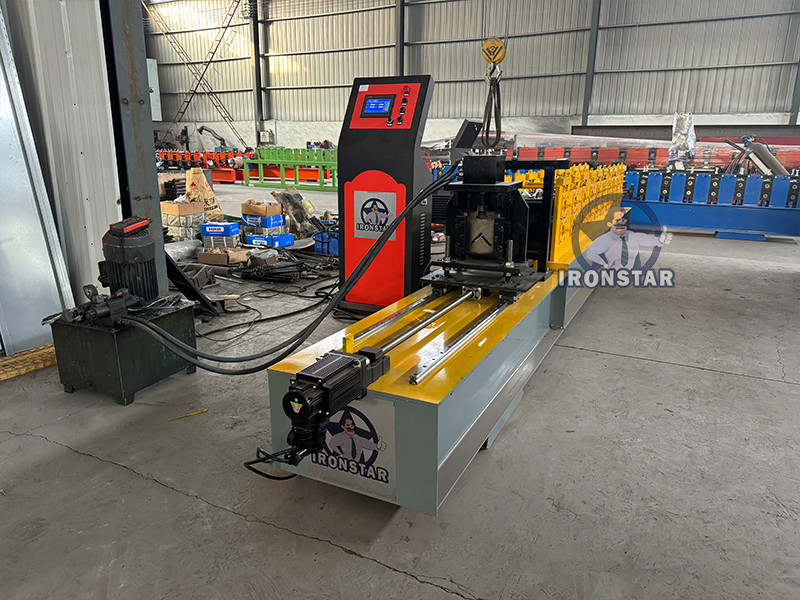

Product show


2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia


2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia


Roll forming machine


2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia


2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia


2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia


2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia


2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia


2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia


Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.

Quality 2.5mm 50*50mm tracking cutting angle bead roll forming machine in Cambodia for sale
